Rotary Airlock Valve Manufacturers, Suppliers, Exporters in India, Bangalore, Chennai, Hyderabad, Kerala, Telangana, Coimbatore, Ahmedabad, Vadodara

Best Rotary Airlock Valve manufacturers, suppliers and exporters in India

We are the leading Rotary Airlock Valve Manufacturers, suppliers, exporters in India, Bangalore, Chennai, Hyderabad, Kerala, Telangana, Coimbatore, Ahmedabad, Vadodara offering a wide range of rotary airlock valves at the best price.
With decade of experience in the industry, we Rotech are prominent Rotary airclock valves Manufacturers, suppliers, and exportersin India.Our rotary airclock valve is the best solution for bulk handling materials operation in the industry. This valve can handle a variety of materials like granules, dry powders, fly ash, sugar, cement, flour, starch, minerals, grains and drugs. Our valves are made in compact size that can easily fit to any installations.

On the basis of specifications, we design and manufacture custom built rotary airlock products that can satisfied the needs of our esteemed clients.The offered range of valves are providing highest safety and efficiency for any types of feeding and metering operations.

ROTECH has an extensive range of rotary valves used in a wide range of applications from heavy minerals industries to light agricultural applications.

After years of engineering and manufacturing rotary airlocks, we consider ourselves proven experts on the various rotary airlock and valve designs available to our customers. We understand that temperature, pressure, size and construction plays a very significant role in processing various materials which is why all of our rotary airlock valves are carefully machined for those unique specifications. Each of our rotary airlocks can be individually customized to your exact processing specifications to ensure optimal, reliable and worry-free operation that meets your precise needs.

Perfect sealing is definitely required on the rotating shaft and Rotech rotary airlocks adhere to it by using "Labyrinth seals". To seal dust and achieve smooth operation, dust tight seal on a rotating shaft is required. These labyrinth seals even effective with highly abrasive products and also when there is a differential pressure.

What is rotary airclock valve? How does it work?

Rotary airclock valve is the valve used to control or monitor flow of the materials from one port to another while keeping better airlock or seal between them.

Rotary airlock valves are designing with cast iron body which consists of an internal rotating rotor, a drive package, an inlet and outlet for entering and existing materials from the valve. A rotor is assembled with 6 metal blades and vanes that are attached to the shaft are rotating while feeding or metering operation. The gap between the rotor vanes develops pockets that receive material at the inlet port and exits at outlet port, as the rotor rotates. Airlock system is given for transferring the materials from inlet to outlet with preventing airflow through it.

Where the rotary airclock valves are used?

Our rotary airclock valves are found in the industries such as power & energy, food processing, cement, plastic, mining, minerals, pharmaceuticals, petrochemical and many other bulk handling industry.

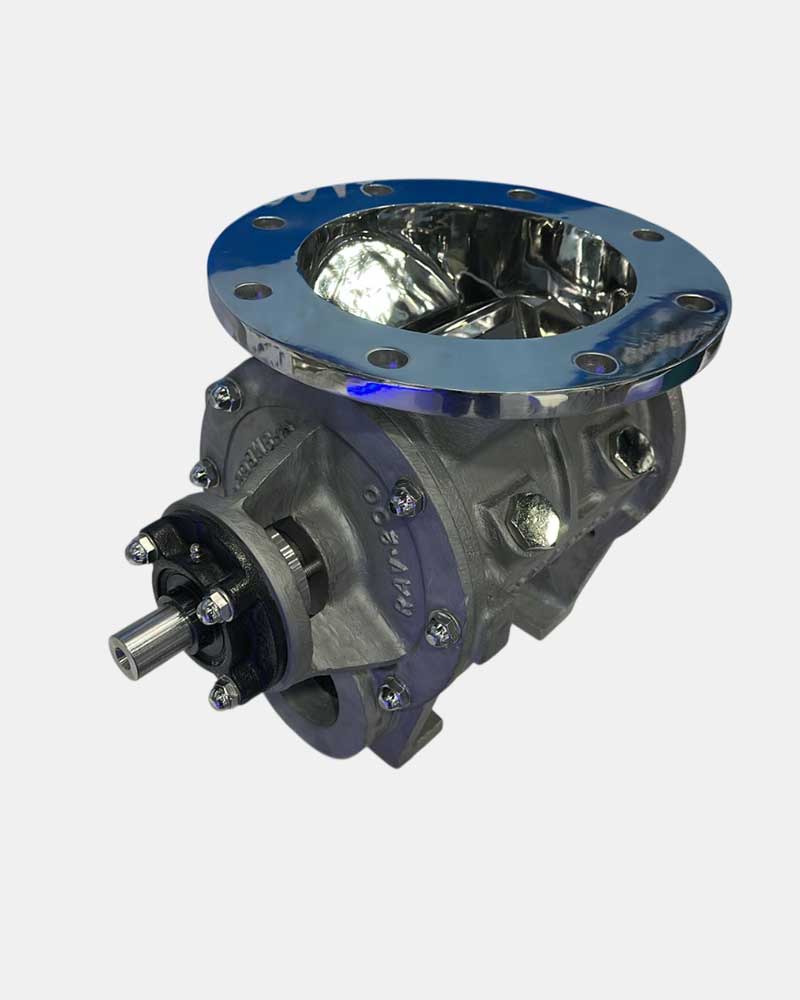

ROTECH BLOW THROUGH ( RBT SERIES )

ROTECH ranges of RBT valves are available in opening sizes from 150, 200,250, 300 and 350 mm. RBT series rotor is fabricated / Casted open-ended style, perfectly designed and manufactured to have a close radial clearance of 0.10mm. Rotech RBT series body is fully casted on a single piece. These valves are compact in design and robustly built.

Opening Size 150, 200, 250, 300 and 350 mm
Flange Opening Square / ROUND
Differential Pressure Higher Pressure handling capability
Temperature Build to eminent Temperature
Drives Chain Driven / DIRECT DRIVE
Material of Construction Fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 and cast iron.
Rotor Open Fabricated type

FEATURES

  • Heavy Duty cast iron construction with Chain drive.
  • Robust body and compact in design.
  • Easy installation and maintenance.
  • Build to eminent temperature.
  • Higher pressure handling capability.
  • Reliable solution for smooth conveyance of materials in a Pneumatic conveying system with minimal leakage.

APPLICATION

Rotech RBT Series valves are best suitable for food, flour, grain, plastic, chemical, pharma and milling industries. These valves are uniquely designed for the pneumatic conveying systems to achieve a smoother flow of materials.

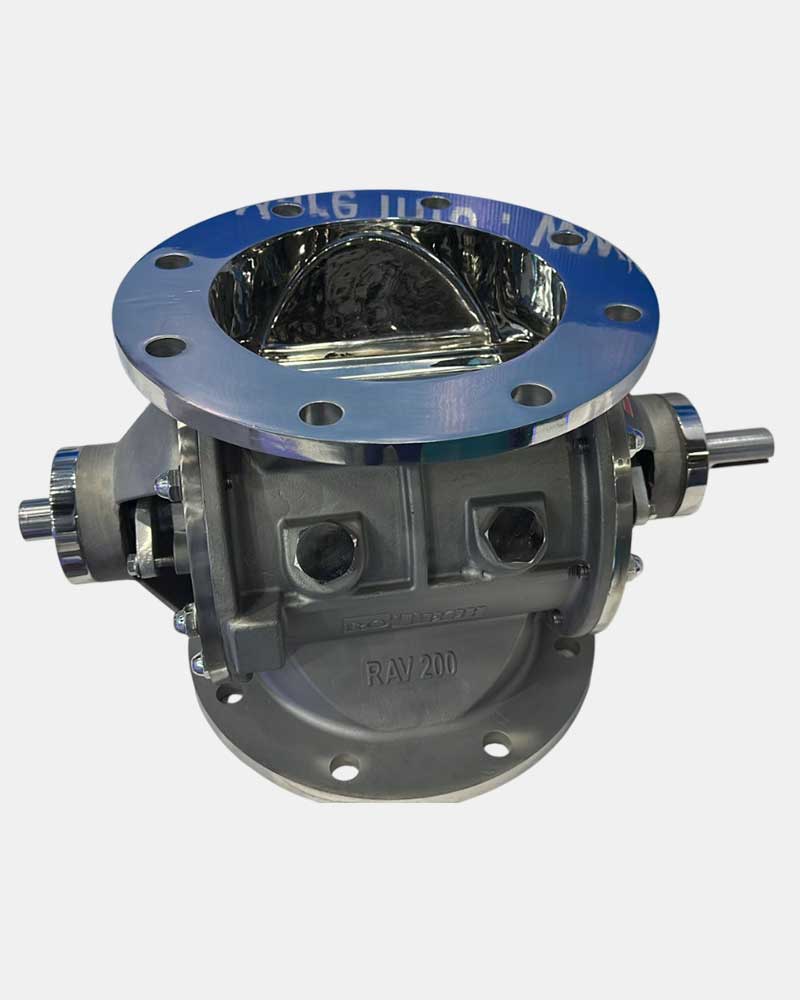

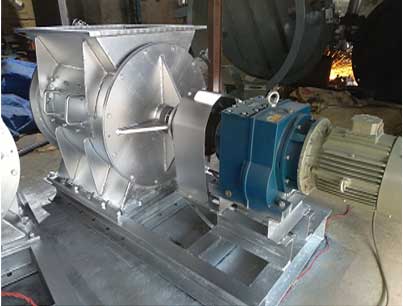

ROTECH DROP THROUGH ( RDT SERIES )

We are instrumental in manufacturing and exporting a quality range of Drop Through Rotary Airlock Valve that are fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 and cast iron to ensure high filling efficiency and low leakages. These air control valves are designed with differential pressures up to 10,000 mm of water column and widely used in steel plants, cement plants, power plants, pulp and paper mills, sugar mills and waste water treatments.

Opening Size 150 , 200, 250 , 300 , 350 , 400 , 450 , 500 ,550 , 600 , mm
Flange Opening Circular / Square
Differential Pressure Higher Pressure handling capability
Temperature Build to eminent Temperature
Drives Direct Driven / Chain Driven
Material of Construction Fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 and cast iron.

FEATURES

  • High Filling efficiency with guiding at inlet and outlets.
  • Closed clearances for very low leakages.
  • Out-bored mounted bearings offering Dust free and No heat to the Bearings.
  • Designs with differential Pressures up to 10,000 mm of Water Column
    (Standard Version).

APPLICATION

  • Steel Plants
  • Cement Plants
  • Power Plants
  • Pulp and Paper Mills
  • Sugar Mills
  • Waste water treatments
  • Mines
  • Process Plants
  • Material Handling Equipments
  • Pneumatic Conveying Equipment

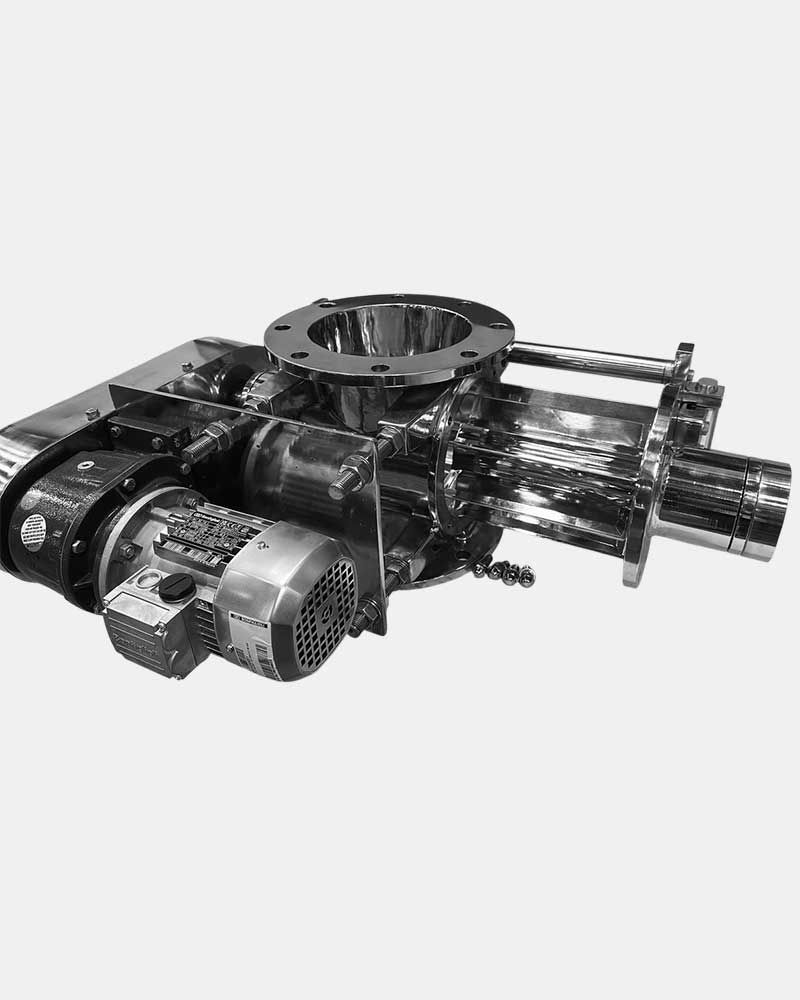

ROTECH QUICK CLEANING VALVES ( RQC SERIES )

Rotary Valve for Metering, Feeding and Airlock Applications Rotech (RQC) Series Rotary Airlock was designed specifically for applications where quick cleaning or frequent removal of the rotary valve internals is necessary. The RQT permits safe, tool-less removal of the rotor and end plate as one single piece. This eliminates the often time-consuming step of “gapping” the rotor during reassembly for quick and easy operation. Additionally, there are no guide rails that require extra maintenance.
Other features of the Quick-Take-Apart Series include eight-blade rotors, available square sizes of 6, 8, 10 or 12 inches, cast iron or stainless steel construction, and direct drive gear-motors available in 9, 15 or 23 RPM.

Opening Size 150 , 200, 250 , 300 , 350 , 400 mm
Flange Opening Circular / Square
Differential Pressure Higher Pressure handling capability
Temperature Build to eminent Temperature
Drives Direct Driven / Chain Driven
Material of Construction Fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 and cast iron.

FEATURES

  • High Filling efficiency with guiding at inlet and outlets.
  • Closed clearances for very low leakages.
  • Out-bored mounted bearings offering Dust free and No heat to the Bearings.

APPLICATION

  • Cement Plants
  • Pulp and Paper Mills
  • Sugar Mills
  • Waste water treatments
  • Mines
  • Process Plants
  • Pneumatic Conveying Equipment

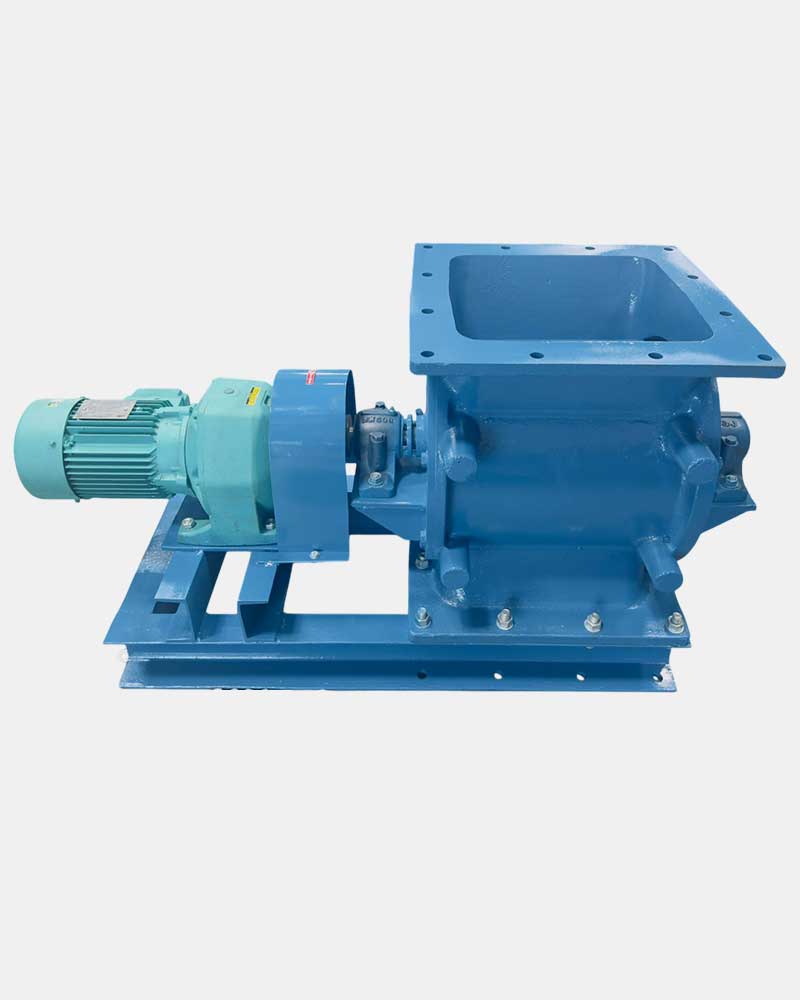

ROTECH HEAVY DUTY AIRLOCK VALVES ( RHD SERIES )

We are instrumental in manufacturing and exporting a quality range of Heavy Duty Rotary Airlock Valve that are fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 to ensure high filling efficiency and low leakages. These air control valves are designed with differential pressures and widely used in steel plants, cement plants, power plants, pulp and paper mills, sugar mills and waste water treatments.

Opening Size 650, 700, 800, 900, 1000, 11000 , 1200 , 1500 , mm
Flange Opening Circular / Square
Differential Pressure Higher Pressure handling capability
Temperature Build to eminent Temperature
Drives Direct Driven / Chain Driven
Material of Construction Fabricated with carbon steel, stainless steel 202/ 304/ 316/ 410 and cast iron.

FEATURES

  • High Filling efficiency with guiding at inlet and outlets.
  • Closed clearances for very low leakages.
  • Out-bored mounted bearings offering Dust free and No heat to the Bearings.
  • Designs with differential Pressures up to 10,000 mm of Water Column
    (Standard Version).

APPLICATION

  • Steel Plants
  • Cement Plants
  • Power Plants
  • Pulp and Paper Mills
  • Sugar Mills
  • Waste water treatments
  • Mines
  • Process Plants
  • Material Handling Equipments
  • Pneumatic Conveying Equipment
