ROTECH QUICK CLEANING VALVES ( RQC SERIES )
Rotary Valve for Metering, Feeding and Airlock Applications Rotech (RQC) Series Rotary Airlock was designed specifically for applications where quick cleaning or frequent removal of the rotary valve internals is necessary. The RQT permits safe, tool-less removal of the rotor and end plate as one single piece. This eliminates the often time-consuming step of “gapping” the rotor during reassembly for quick and easy operation. Additionally, there are no guide rails that require extra maintenance.
Other features of the Quick-Take-Apart Series include eight-blade rotors, available square sizes of 6, 8, 10 or 12 inches, cast iron or stainless steel construction, and direct drive gear-motors available in 9, 15 or 23 RPM.
| Opening Size | 150, 200, 250, 300 and 350 mm |
|---|---|
| Flange Opening | Square / Round |
| Differential Pressure | Higher pressure handling capability |
| Temperature | Built to eminent temperature |
| Drives | Chain Driven / Direct Drive |
| Material of Construction | Fabricated with carbon steel, stainless steel 202 / 304 / 316 / 410 and cast iron. |
| Rotor | Open fabricated type |
Features
- High Filling efficiency with guiding at inlet and outlets.
- Closed clearances for very low leakages.
- Out-bored mounted bearings offering Dust free and No heat to the Bearings.
Application
- Cement Plants
- Pulp and Paper Mills
- Sugar Mills
- Waste water treatments
- Mines
- Process Plants
- Pneumatic Conveying Equipment

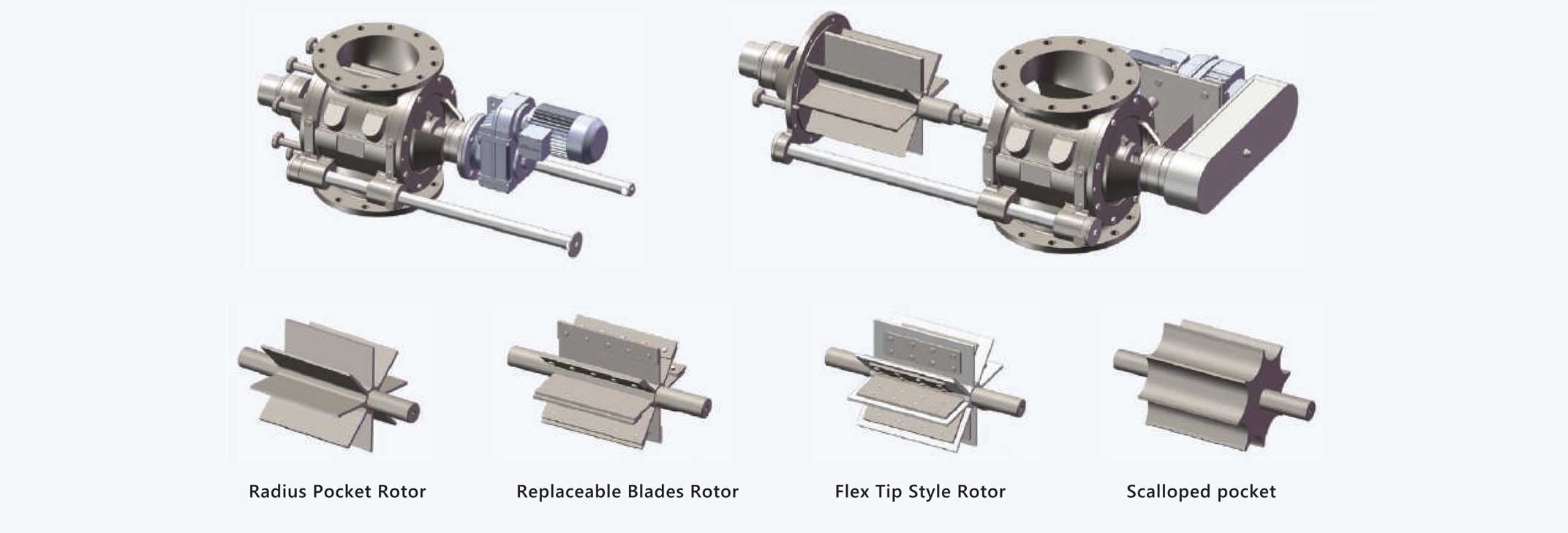

Structure

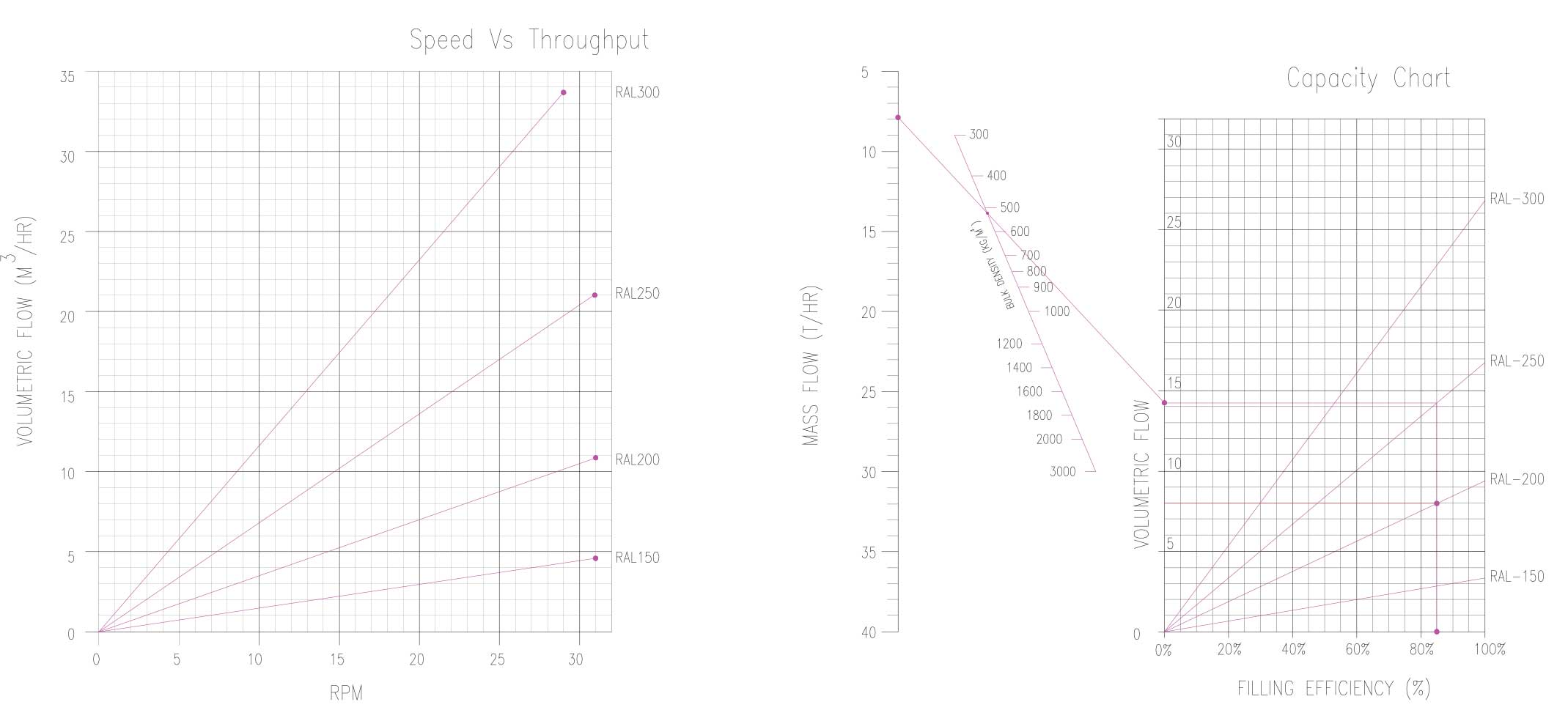

Model Selection Chart

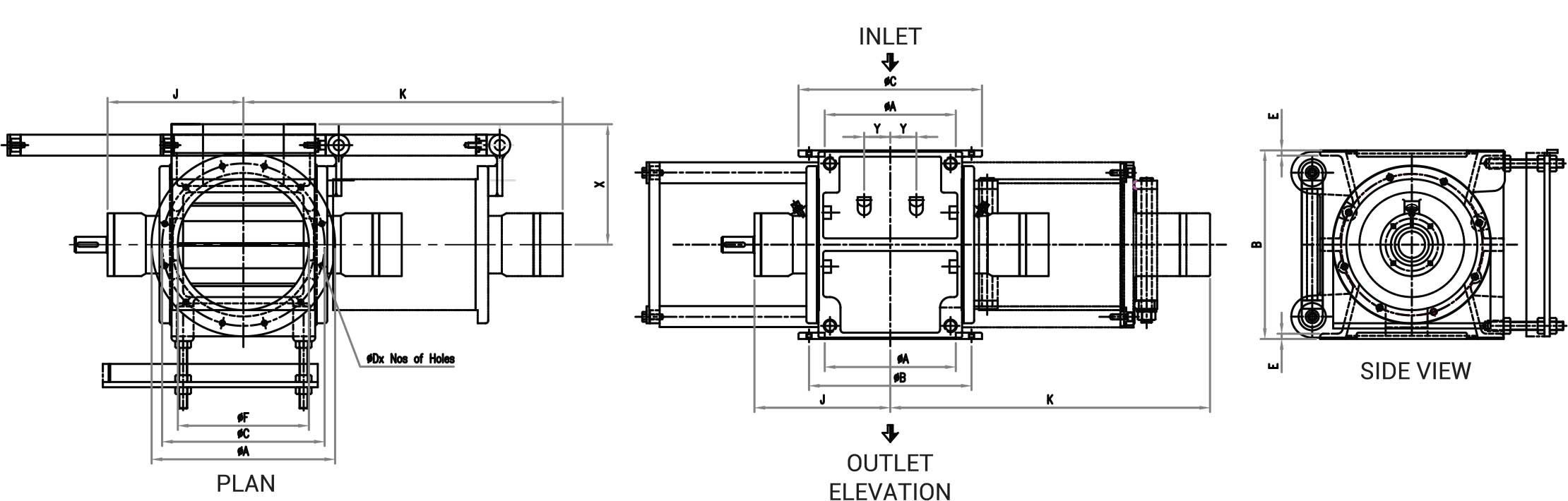

Dimensions

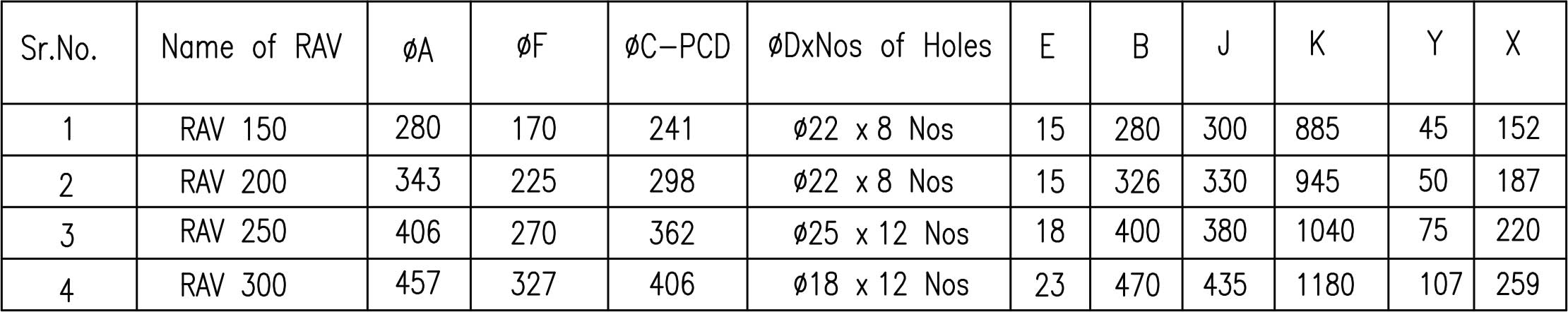

Parameters
