ROTECH BLOW THROUGH ( RBT SERIES )
ROTECH ranges of RBT valves are available in opening sizes from 150, 200,250, 300 and 350 mm. RBT series rotor is fabricated / Casted open-ended style, perfectly designed and manufactured to have a close radial clearance of 0.10mm. Rotech RBT series body is fully casted on a single piece. These valves are compact in design and robustly built.
| Opening Size | 150, 200, 250, 300 and 350 mm |
|---|---|
| Flange Opening | Square / Round |
| Differential Pressure | Higher pressure handling capability |
| Temperature | Built to eminent temperature |
| Drives | Chain Driven / Direct Drive |
| Material of Construction | Carbon Steel, Stainless Steel 202 / 304 / 316 / 410, and Cast Iron |
| Rotor | Open fabricated type |
Features
- Heavy Duty cast iron construction with Chain drive.
- Robust body and compact in design.
- Easy installation and maintenance.
- Build to eminent temperature.
- Higher pressure handling capability.
- Reliable solution for smooth conveyance of materials in a Pneumatic conveying system with minimal leakage.
Application
Rotech RBT Series valves are best suitable for food, flour, grain, plastic, chemical, pharma and milling industries. These valves are uniquely designed for the pneumatic conveying systems to achieve a smoother flow of materials.
Structure

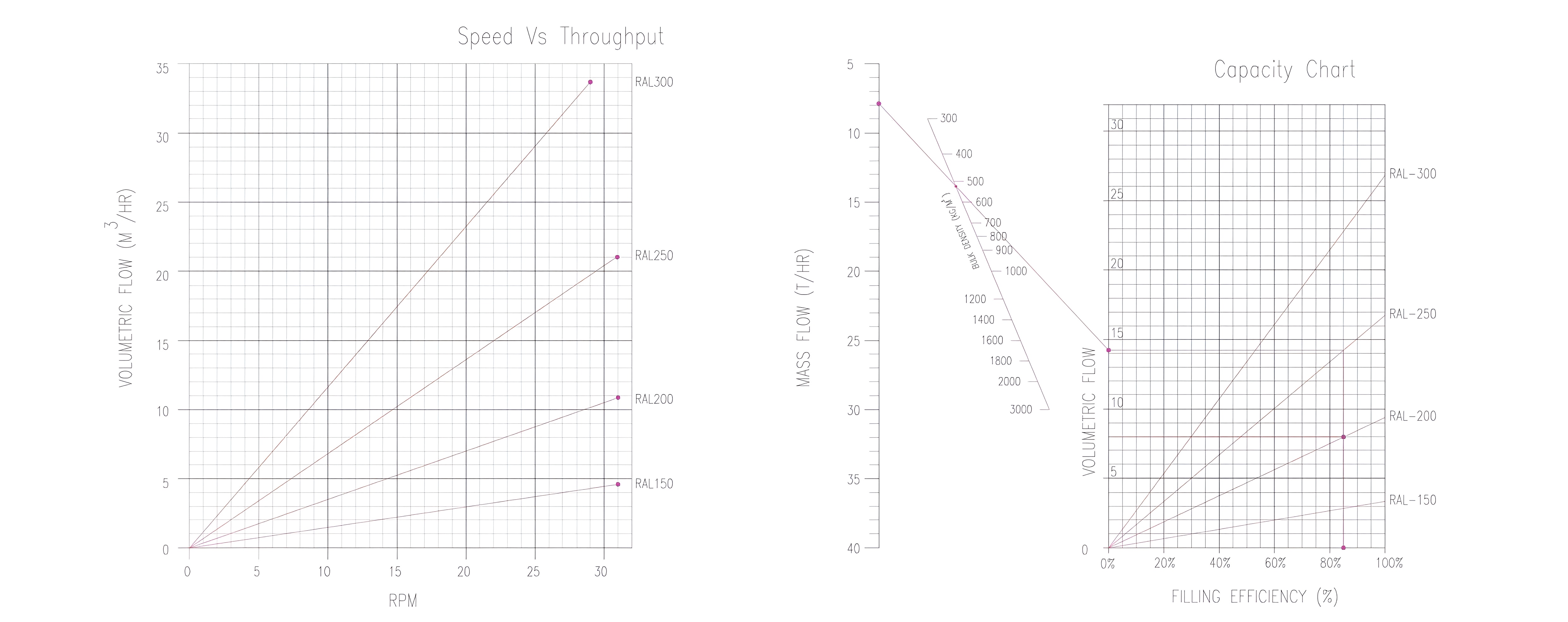

Model Selection Chart
Dimensions

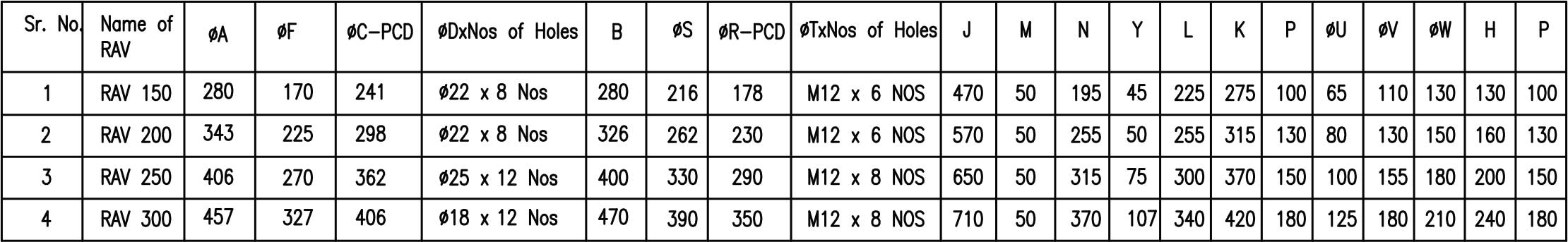

Parameters
